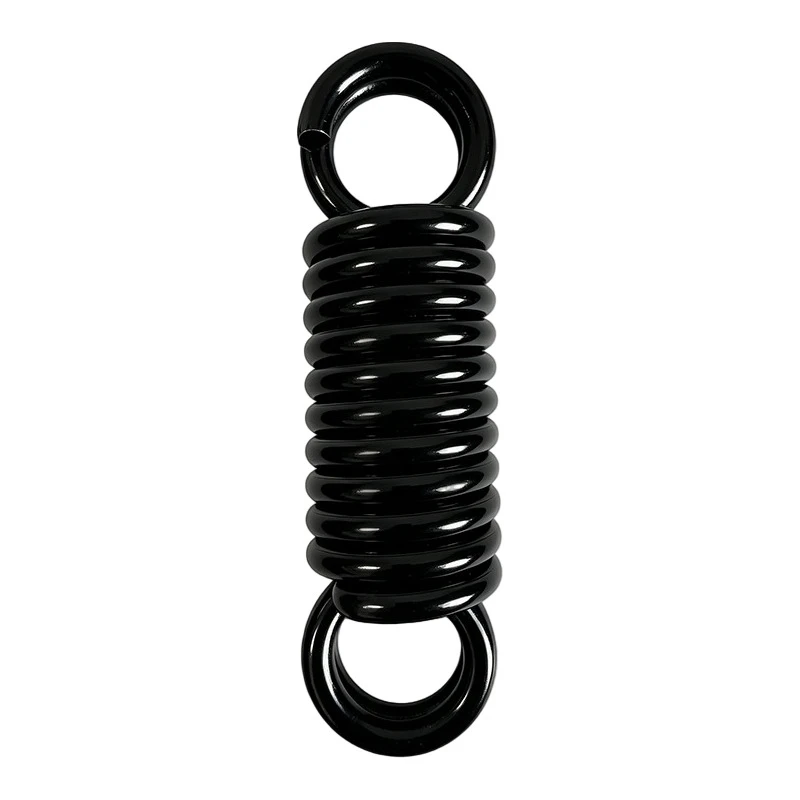

High Tension Springs
We produce robust high tension springs with wire diameters from 2mm to 15mm, outer diameters 15mm–120mm and customizable free length 100mm–2000mm to withstand massive tensile loads. Strict heat treatment and surface strengthening extend the service life of each high tension springs under frequent stretching cycles.
Strength Performance
Super large tensile load capacity
High-strength alloy steel and high-carbon steel deliver outstanding bearing capacity for heavy-load equipment.
Superior material strength
Adopt 60Si2Mn, 55CrSi, 50CrVA alloy spring steel and 82B, T9A high-carbon steel with balanced strength and toughness.
Great anti-fatigue property
Standardized heat treatment and surface strengthening prevent fatigue fracture under repeated tension.
Reinforced end structures
Round hooks, long hooks, flat hooks and lifting rings provide firm connection and avoid deformation or breakage.
Surface Anti-Rust Protection
Plastic coating, electrophoresis, black oxide and zinc plating are available to block rust and extend service life in humid outdoor environments.
Application Fields
Mainly used for lifting equipment, elevators, mining machinery, automobiles, engineering machinery and heavy hardware requiring large tensile force.
Raw Material Selection & Strict Quality Control
Baoding Zhongxin Spring Manufacturing Co., Ltd. attaches great importance to raw material quality. All high tension springs use premium spring steel from formal large steel mills to control quality from the source. We implement strict incoming inspection for each batch of steel, testing chemical composition and mechanical properties before production. Production heat treatment parameters are adjusted according to different materials and sizes to achieve optimal balance of strength and toughness. Finished products pass tensile testing and appearance inspection before delivery to guarantee compliance with design performance standards.
Product Parameter Table
|
Parameter Item |
Value / Range |
|
Wire Diameter Range |
2 mm ~ 15 mm |
|
Outer Diameter Range |
15 mm ~ 120 mm |
|
Free Length |
100 mm ~ 2000 mm (Customizable) |
|
End Hook Types |
Round hook, long hook, flat hook, lifting ring and other high-strength ends |
|
Optional Materials |
Alloy Spring Steel (60Si2Mn / 55CrSi / 50CrVA), High Carbon Spring Steel (82B / T9A) |
|
Surface Treatment |
Plastic Coating / Electrophoresis / Black Oxide / Zinc Plating |
|
Customization Mode |
Customized per drawings, samples or high-tension load requirements |
|
Product Features |
Large tensile force, high strength, anti-fatigue, strong bearing capacity |
|
Application Scenarios |
Lifting equipment, elevators, mining machinery, automobiles, engineering machinery, heavy hardware |
Hot Tags: high tension springs, China high tension springs manufacturers, suppliers, factory
