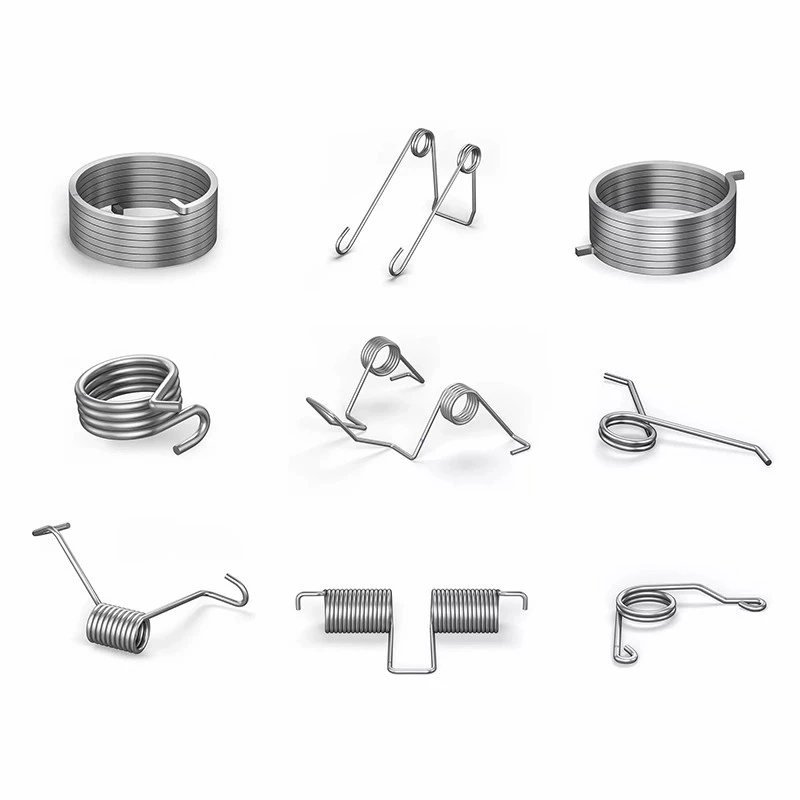

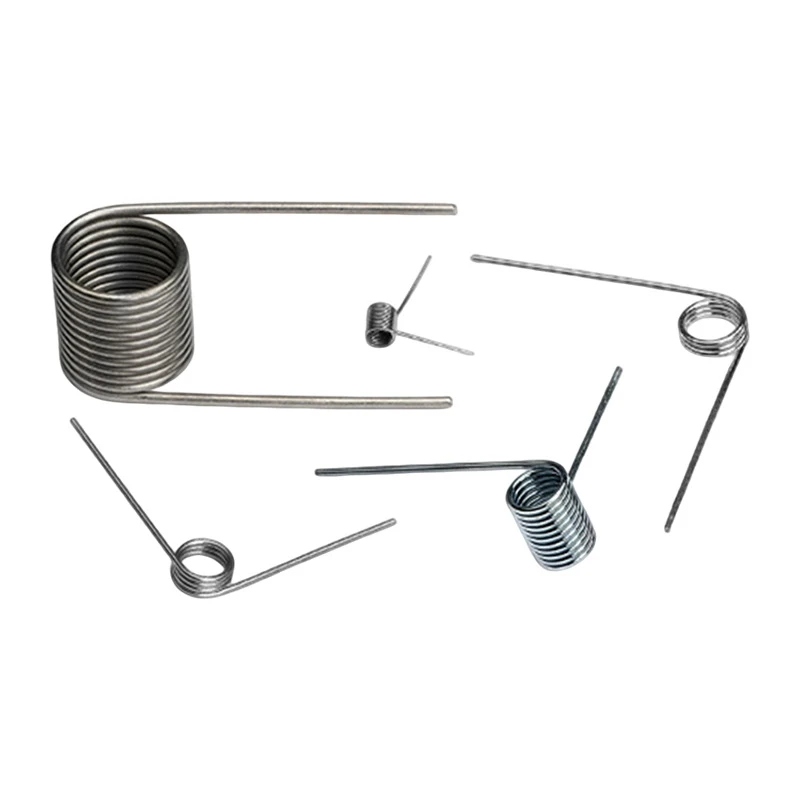

Industrial Torsion Spring
We produce premium industrial torsion spring with high-quality spring steel wire through precision coiling. The wire diameter ranges from 0.5mm to 6.0mm, outer diameter from 5mm to 100mm. Custom rotation directions including clockwise, counterclockwise and bidirectional are available to match diverse working conditions.
Product Features
Stable torque:
Precise coiling and heat treatment guarantee uniform torque output within the working stroke, delivering consistent rebound force for every industrial torsion spring.
Outstanding fatigue resistance:
Raw materials include high carbon steel such as 65Mn & 82B, and alloy spring steel 60Si2Mn. Strict quenching and tempering processes extend service life under repeated torsion.
Customizable specifications:
Wire diameter, outer diameter, coil count and torsion arm angles can be adjusted according to installation space and load requirements.
Diverse surface treatments:
Natural finish, black oxide, zinc plating, nickel plating and plastic coating are optional to meet anti-rust and appearance demands in different environments.
Application Fields
Widely adopted for industrial doors, automobile seats, hardware fixtures, electrical switches, mechanical equipment and agricultural machinery that require torsional reset or torque transmission.
About Us
Baoding Zhongxin Spring Manufacturing Co., Ltd. owns 7 years of spring production experience, covering a 30-mu factory zone with 68 employees and a monthly output of 1 million springs. As a direct manufacturer, we self-produce carbon steel wire to cut intermediate links, balancing stable quality and competitive pricing. All items support customization based on drawings, samples or working condition parameters to satisfy personalized client demands.
Product Parameter Table
|
Parameter Item |
Value / Range |
|
Wire Diameter Range |
0.5 mm ~ 6.0 mm |
|
Outer Diameter Range |
5 mm ~ 100 mm |
|
Rotation Direction |
Clockwise / Counterclockwise / Bidirectional Torsion |
|
Optional Materials |
Carbon Spring Steel (65Mn / 77B / 82B), Alloy Spring Steel (60Si2Mn / 55CrSi), Stainless Steel (SUS304 / SUS316), Piano Wire |
|
Surface Treatment |
Natural / Black Oxide / Zinc Plating / Nickel Plating / Plastic Coating |
|
Customization Mode |
Custom design per drawings, samples or working conditions |
|
Application Scenarios |
Industrial doors, automobile seats, hardware fixtures, electrical switches, mechanical equipment, agricultural machinery |
