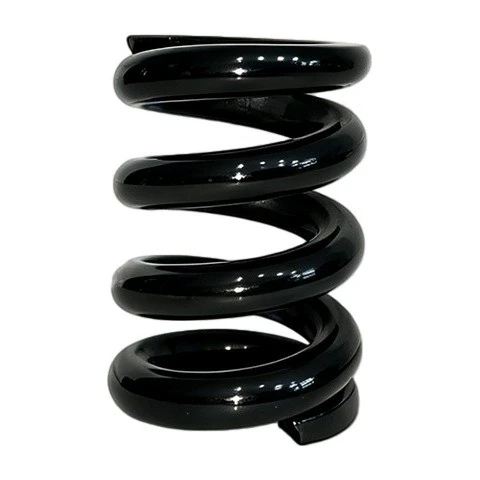

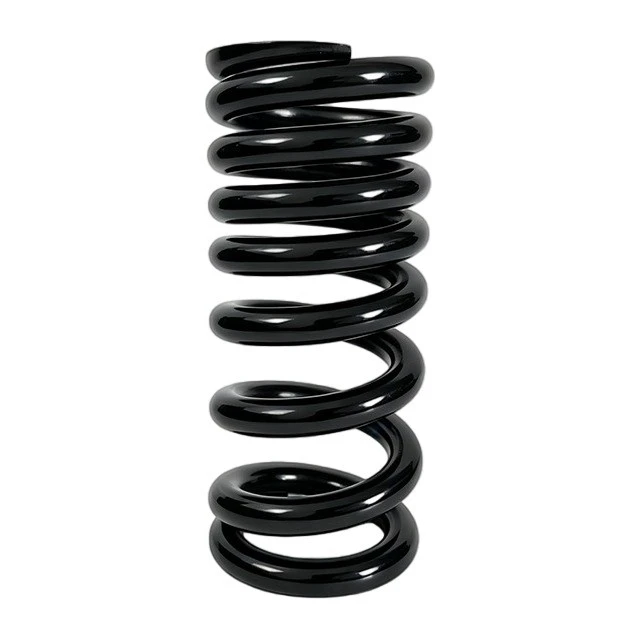

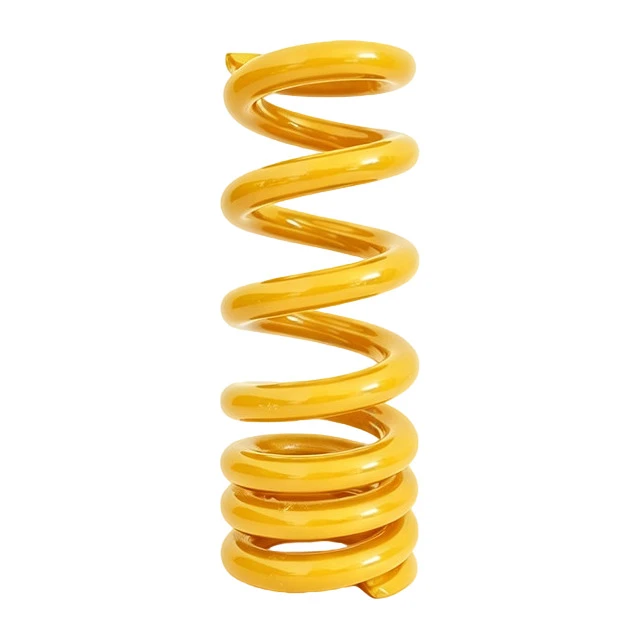

Motorcycle Shock Absorber Springs
We manufacture high-performance motorcycle shock absorber springs with wire diameters 6mm–16mm, outer diameters 35mm–180mm and customizable free height 150mm–500mm, split into front shock and rear shock two mainstream categories. Shot peening strengthening greatly improves anti-fatigue performance of each motorcycle shock absorber springs.
Riding Comfort Advantages
Superior shock buffering
Optimized spring stiffness cooperates with dampers to filter road irregularities and reduce body vibration transmission.
Moderate rebound elasticity
Tuned rebound performance delivers smooth reset without excessive bouncing for stable riding feedback.
Excellent fatigue resistance
Frequent compression & rebound during long-distance riding will not lead to early elastic attenuation.
Consistent riding experience
Stable elastic output maintains reliable shock absorption under different road conditions and load weights.
Types & Material Selection
Two main types: front shock absorber spring and rear shock absorber spring. Raw material options: 60Si2Mn, 55CrSi, 50CrVA alloy spring steel. Surface craft: plastic coating, electrophoresis, shot peening strengthening plus anti-rust sealing treatment.
Application Scenarios
Fit for shock absorption systems of street bikes, scooters, electric two-wheelers, off-road motorcycles and racing bikes.
Mature Shot Peening & Surface Finishing Technology
Baoding Zhongxin Spring Manufacturing Co., Ltd. masters mature shot peening and surface treatment processes for motorcycle shock absorber springs, which have strict standards for surface quality. High-speed shot blasting creates compressive stress on the spring surface to significantly extend fatigue service life. Shot peening is followed by multi-layer anti-corrosion finishes such as plastic coating and electrophoresis to balance internal mechanical performance and external rust resistance. We precisely control shot peening intensity and coverage to guarantee uniform strengthening effect across all batches of shock absorber springs.
Product Parameter Table
|
Parameter Item |
Value / Range |
|
Wire Diameter Range |
6 mm ~ 16 mm |
|
Outer Diameter Range |
35 mm ~ 180 mm |
|
Free Height |
150 mm ~ 500 mm (Customizable) |
|
Spring Types |
Front shock absorber spring / Rear shock absorber spring (Motorcycle exclusive) |
|
Optional Materials |
Alloy Spring Steel (60Si2Mn / 55CrSi / 50CrVA) |
|
Surface Treatment |
Plastic Coating / Electrophoresis / Shot Peening Strengthening + Anti-rust Treatment |
|
Customization Mode |
Customized by vehicle models or drawings, supporting shock absorber matching development |
|
Product Features |
Excellent shock absorption, moderate rebound force, strong anti-fatigue capacity, comfortable riding experience |
|
Application Scenarios |
Shock absorption systems of street bikes, scooters, electric vehicles, off-road bikes, racing motorcycles |
Hot Tags: motorcycle shock absorber springs, China motorcycle shock absorber springs manufacturers, suppliers, factory
